01

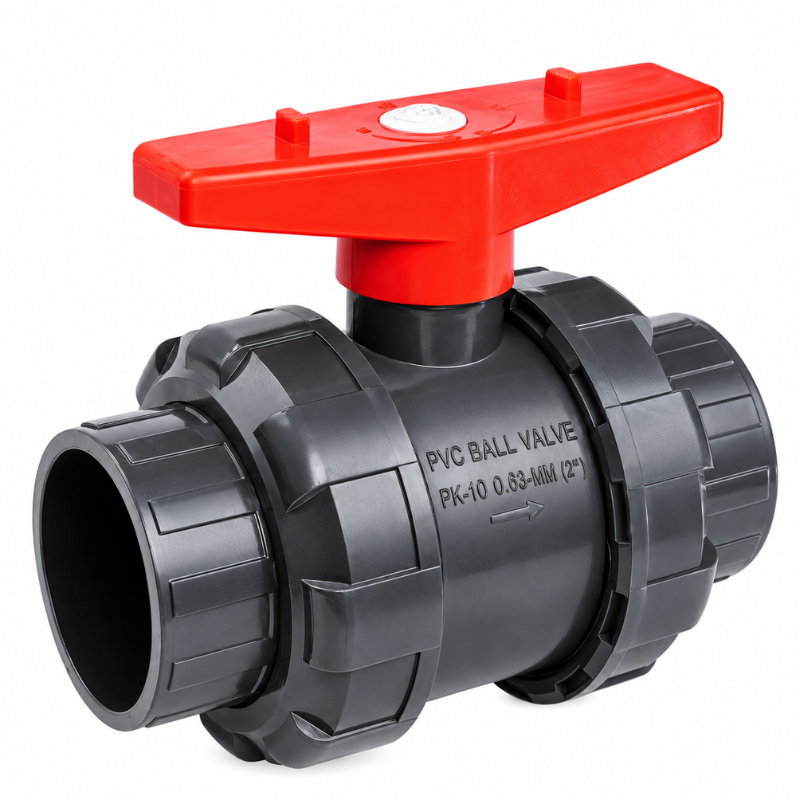

The double union is the valve you fit where you expect to come back. Both ends unscrew, so the body lifts out of a charged line for seat replacement or cleaning without touching the pipework either side of it.
The wrench is moulded into the handle. Nothing else is needed to take it apart in the field.
Where it goes
- Drip irrigation main and sub-main lines
- Zone and sector isolation
- Pump discharge headworks
- Any line that needs periodic servicing
02
Fourteen parts, and the wrench is in the handle.
Scroll to assemble. Every part below is field-replaceable.
Socket
Union nut
Socket seal O-ring
Stem O-ring
Stem
Handle
Body
Ball seat
Ball
Ball seat
Seat carrier
Socket seal O-ring
Union nut
Socket
03
- Quarter turn hand operated ON/OFF ball valve
- End connections: solvent socket
- True union design — install or repair without expanding the pipe system
- Union nut load is not transferred onto the ball
- Free from vibration or chattering during opening and closing
- Inbuilt spanner wrench on the handle for disassembly and assembly
- TPE seals ensure leak-free operation at low, fixed torque
- Chemical and corrosion resistant, UV-stabilised colour
04
| Material | RPVC |
|---|---|
| Size range | 32 mm to 100 mm |
| End connection | Solvent socket |
| Operation | Quarter-turn, hand operated |
| Seals | TPE |
| Operating pressure |
To be confirmed 16 bar up to 2"; PN 10 for 3" model — confirm per size |
Need a quote on
this valve?
Tell us the sizes and quantities. We price against volume, so nothing is published on the site.
